Electric Platform

WCT450E

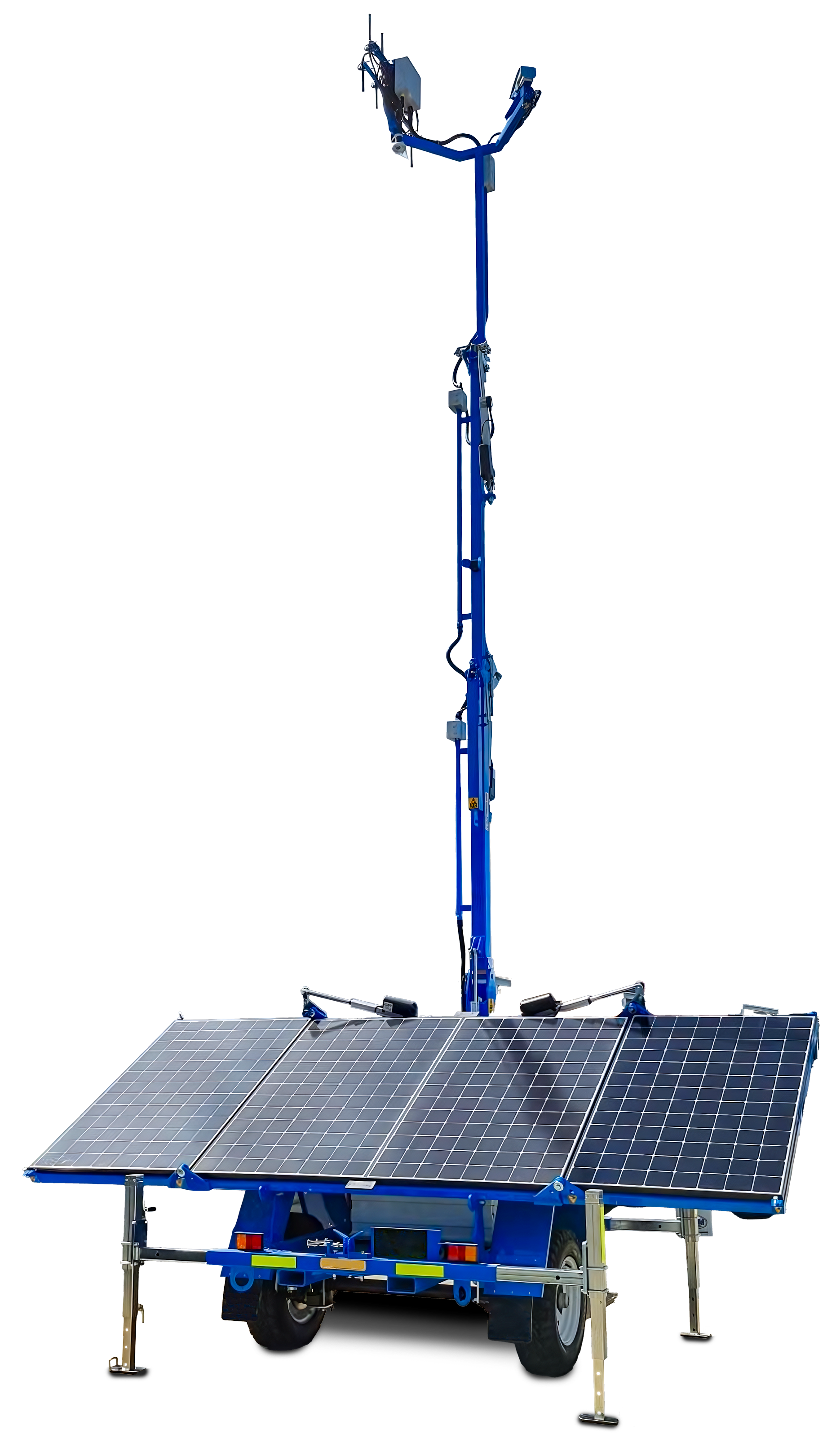

If you are looking for high quality platform for your mobile communications, then look no further than Britetech’s mine specification Wireless Communications Trailer WCT-E (Electric Mast). Ideally suited to the Australian mining industry, the WCT-E is built to cope in the toughest conditions and as it weighs less than 2 tonnes per tower, it can easily be towed by any on-site vehicle.

The electrically operated model reaches a maximum height of 8 metres and a customer specific headstock can be optioned, comes standard with static head and two mounting poles, all conveniently controlled from the ground. With safety paramount, the WCT-E features a convenient one-man operation, significantly reducing the likelihood of handling injuries or the requirement of extra personnel.

Electric Platform

WCT450E Specifications

Designed for safe, single operator use. Comms gear accessible from ground level
Easy to operate Control Panel (Lockable)
Full 8.3m High Multistage Electric Mast Linear actuator driven
Cable management on mast, in full conduit fixed to mast
Cable Over-Ride Brakes
75mm Ring Hitch
Stabiliser legs with spring loaded locking pins that protrude right through both sides of the leg
Forklift Pockets and Two Point Lifting Point (Certified)
Wind Load Certified to 90 km p/h at full height with a maximum 38kg of communications equipment with a sail area no greater than 0.4m² at 8m mounted height
Locking Mast Stow Pins
16 x 7 ROH Track 2 Wheels 6 stud L/C tyres BFG AT KO2
395W Max3 Sunpower Solar panels
Solar panel angle of array 30°
2 fixed solar panel 2 opening panel. The opening panel when closed protects the two panels
Electrically operated solar panel deployment
450Ah LiFePO4 Battery pack 48VDC
50 amp Anderson plug for each Battery
230V AC - 48V DC - 37A Charger to allow for external battery charging C/B and Dog Lock
Lockable 4 Pole 32A DC PV Isolator 1000V
(Red) Minsafe Lockable dual pole battery Isolator Switch
Communications gear cabinet (lockable) IP66 rated 600H x 600W x 300D Stainless Steel
Victron energy MPPT 250/60
Victron SmartShunt 500A / 50mV - Bluetooth Battery Shunt
Victron Cerbo GX
GX Touch 50
Britetech GPS USB Puck
Various Circuit Breakers for DC C Curve
Aluminium junction boxes
Rugged Mine Spec Chassis
LCOM Cat5e Outdoor Shielded and stranded cable
CAT6 1RU patch panel
90° pan and 40° tilt mounting mechanism for PMP450i SM (operated from control panel)
Dome CCTV camera mounting bracket suits 1½” NPT fitment
RPEQ/CENG engineered approved
Electrical schematics and cable schedule for comm’s and power
Wheel chock & S/S bracket x 2
DOWNLOAD BROCHURE TO VIEW FULL SPECS
