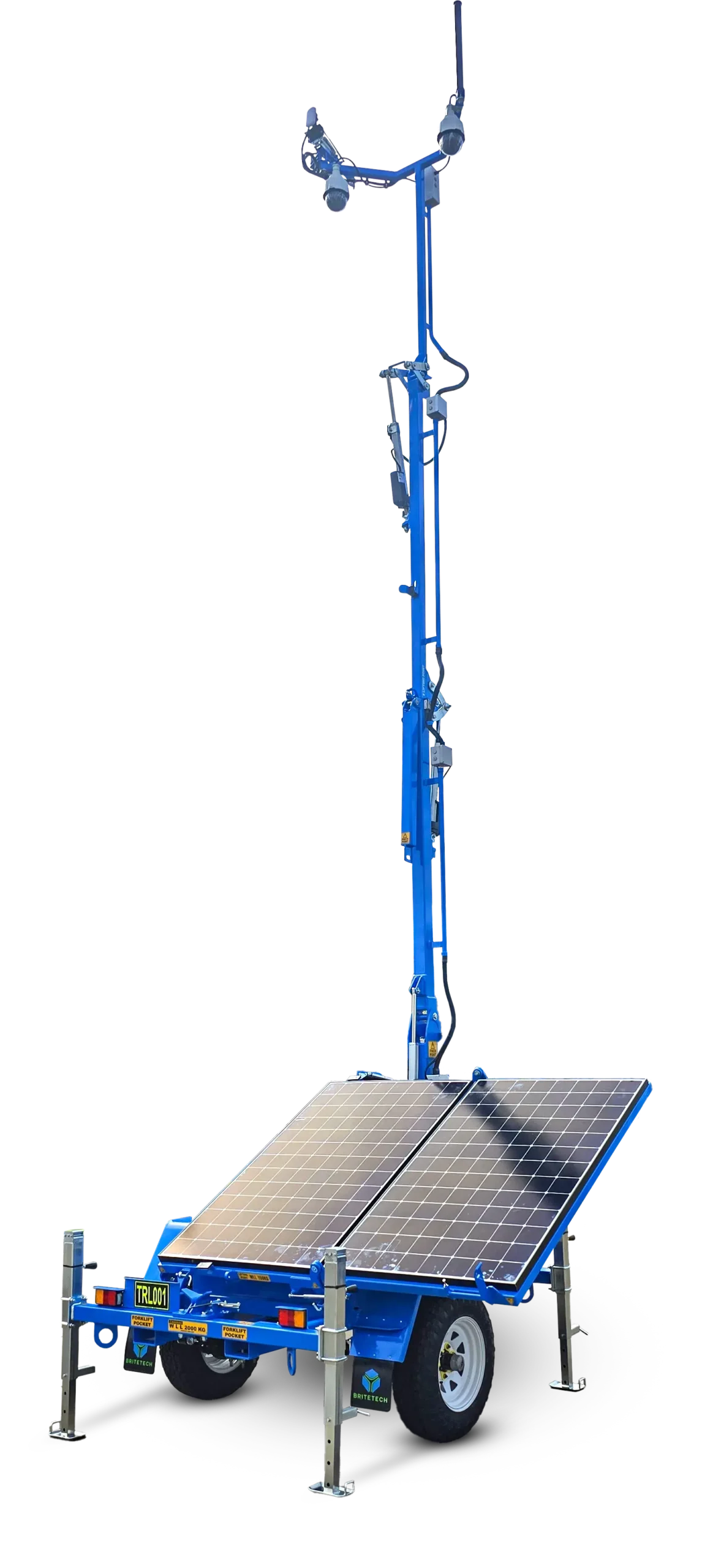

Eco Communications Trailer

ECT300E

If you are searching for a reliable and cost-effective solution for your mobile communications needs, Britetech’s Eco Communications Trailer ECT300E is the ideal choice. Designed as the entry-level platform in our portfolio, the ECT300E combines high-quality features with economical efficiency, making it a perfect fit for the Australian mining industry and other demanding environments.

Built to thrive in tough conditions, the ECT300E is lightweight, with a total weight under 2 tonnes per trailer, ensuring it can be easily towed by any on-site vehicle. Its robust design prioritizes safety and efficiency, offering an electrically operated mast that extends up to 8 metres. The trailer is equipped with a static headstock and two mounting poles, with the option to customize the headstock to meet your specific requirements.
Safety is at the core of the ECT300E’s design. It features a convenient one-person operation, reducing the risk of handling injuries and eliminating the need for additional personnel. All operations can be managed from the ground, ensuring ease of use and enhanced safety for your team.

Choose the Britetech ECT300E for an affordable, high-quality mobile communications platform
that meets the rigorous demands of Australia’s mining sector. With its rugged construction and smart design, the ECT300E stands out as the ultimate solution for your on-site communication needs.

Eco Communications Trailer

ECT300E Specifications

Designed for safe, single operator use. Comms gear accessible from ground level
395W Max3 sunpower solar panels
Solar panel angle of array 30°
1 fixed solar panel 1 opening panel. The opening panel when closed protects the two panels
Aluminium floor plate on underside of solar panel frames
Stainless steel gas struts
AGM GEL batteries 12VDC 300Ah
Lockable 4 pole 32A DC PV isolator 1000V
Lockable dual pole battery isolator switch with red lock out
Communications gear cabinet zinc powder coated (lockable) 600H x 600W x 300D IP66 rated
Lockable control/power cabinet
Victron energy MPPT 250/60
Battery fuel gauge Victron BMV 700
C/B miniature C curve din rail mount circuit breaker 16A 2P
C/B miniature C curve din rail mount circuit breaker 2A
Aluminium junction boxes
Rugged mine spec chassis
Easy to operate control panel
Full 8m high multistage electric mast linear actuator driven
Cable management on mast, in full conduit fixed to mast
50mm O pole 600mm long on top of mast for mounting communications equipment
Cable override brakes
50mm ball hitch
Heavy duty wind down out rigger legs
Forklift pockets and two point lifting point
Wind load certified to 100 km p/h at full height with a maximum 38kg of communications
Equipment with a sail area no greater than 0.4m' at 8m mounted height
Emergency stop
Locking mast stow pins
16 x 7 ROH track 2 wheels 6 stud L/C
H/Duty off-road suspension single axle 2 tonne
LED taillights road registrable features
Sandblasted, zinc powder coated prime & powder coated colour Briteforce blue
High-vis strips on legs, draw bar, rear, and both sides of trailer
Standard decal labels where required
Standard wrap around cable labelling where required
Ubiquiti TOUGHCABLE TC-Carrier TOUGH cable, level 2 CAT5e
FAT conducted for each individual trailer
Electrical schematics and cable schedule for comms and power

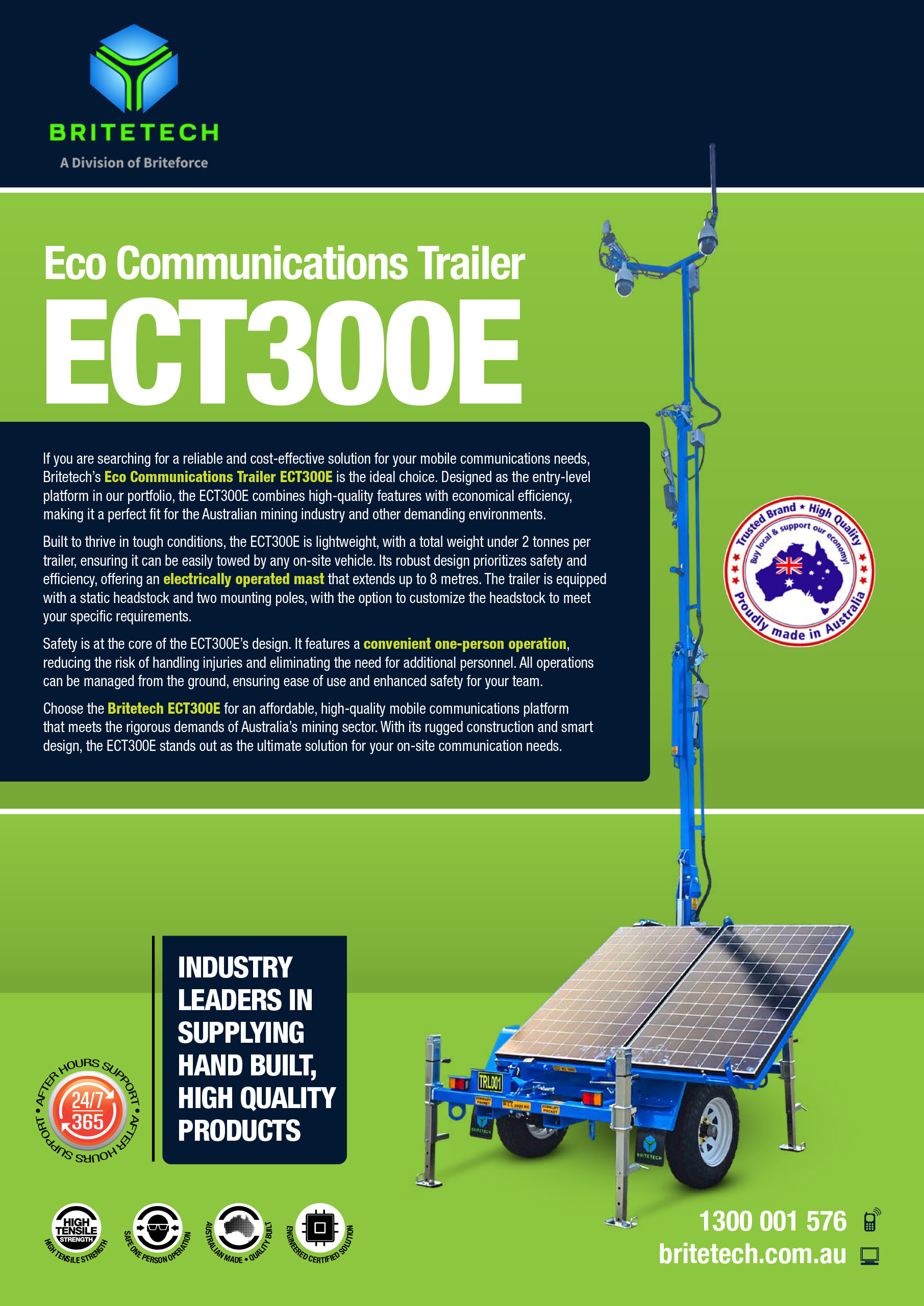

DOWNLOAD BROCHURE TO VIEW FULL SPECS
BT ECT300E
PDF Download

DownloadtheBTECT300EBrochure

Download 554kb PDF
