Hydraulic Platform

WCT450H

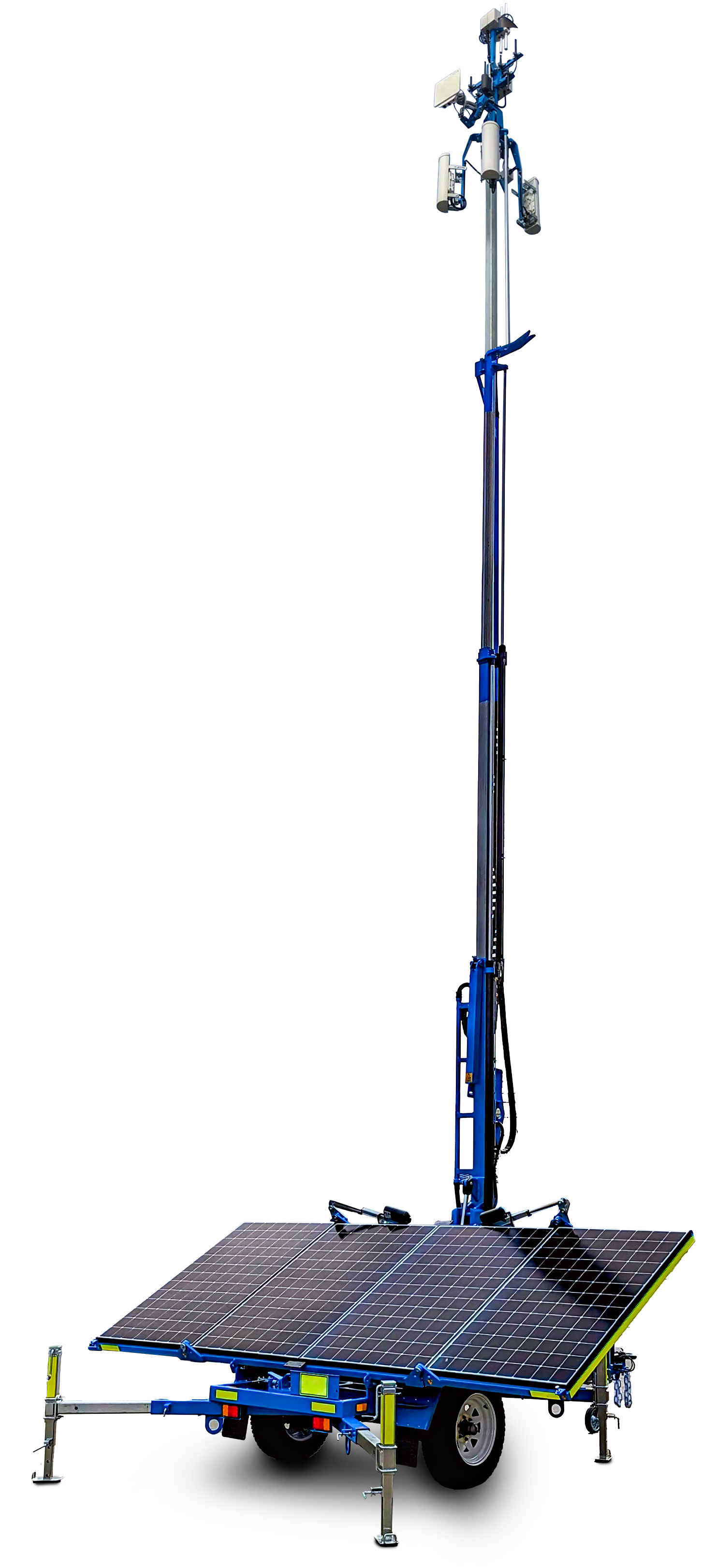

Britetech’s standard mine specification Wireless Communications Trailer WCT450H – (Hydraulic Mast) provides a high quality platform for your mobile communications requirements. Built to cope with the toughest conditions, The WCT450 series weighs less than 2 tonnes per tower, which means it can be towed by any on site vehicle.

The hydraulically operated model reaches a maximum height of 12.5 metres. Customer specific headstock can be optioned with radio bar tilt and rotation of 360°, all controlled from the ground. Safe, One-man operation significantly reduces the likelihood of handling injuries or the requirement of extra personnel.

View Specs Customise
Hydraulic Platform

WCT450H Specifications

WCT450 – Hydraulic
Designed for safe, single operator use. Comms gear accessible from ground level
Rugged Mine Spec Chassis
Easy to operate Control Panel (lockable)
Full 10m/12.5m High Multistage Hydraulic Mast
Double Acting Hydraulic Rams
Lock-safe Lockable Battery Isolator Bracket & dual pole Battery Isolator
Cable Over-Ride Brakes
Heavy Duty Wind Down Out Rigger Legs
Centre and Forklift Lifting Points (Certified)
Risk Assessment Certified
H/Duty 2 Tonne Off-Road Suspension Single Axle 6 stud L/C
16 x 7 ROH Track 2 Wheels 6 stud L/C
Sand Blasted Zinc Powder Prime & Powder Coated (Blaze blue)
Cable Track on mast
Communications gear cabinet (lockable) IP66 rated 600H x 600W x 300D
Aluminium heat shields powder coated pearl white
Battery box enclosure with EXIDE maintenance Free N70ZZ Battery
12V Battery with separate trickle charger for all mast operations
230V AC - 48V DC - 37A Charger to allow for external battery charging
395W Max3 Solar panels SunPower
Electrically operated solar panel deployment
Aluminium floor plate on underside of solar panel frames
Victron energy MPPT 250/60
Britetech GPS USB Puck
Electrically operated 90° Pan Mount for PTZ Camera Options
Electrically operated 360°Pan and 30°tilt mounting bracket for PtMP Options
4.5kg dry chemical fire ext with quick release brackets
Various Circuit Breakers for DC C Curve
Aluminium junction boxes
240V AC Dual pole circuit breaker and lockout device
LCOM Cat5e Outdoor Shielded and stranded
DOWNLOAD BROCHURE TO VIEW FULL SPECS

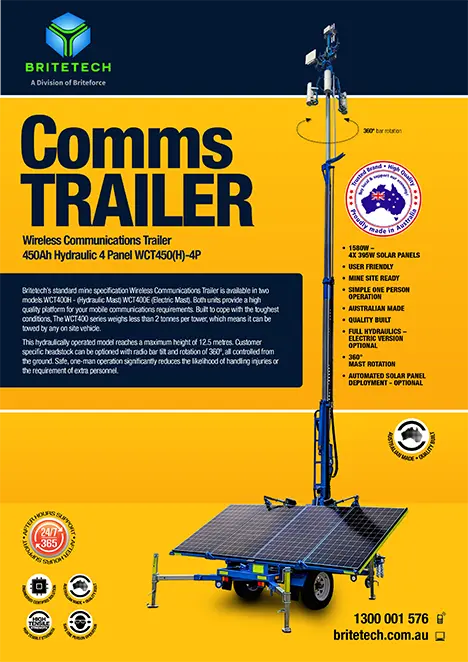

BT Comms Trailer WCT450(H)-4P[23][92]
PDF Download

DownloadtheWCT450HBrochure

Download 1mb PDF

Enquiry

Enquire about WCT450H Communications Platforms
